PCB Manufacturing

Wonderful PCB provide PCB Prototype Services and product-run services to help you get your product to market better.

Our Numbers of PCB Manufacturing

years experience

10 +

Customers

1000 +

Countries Delivery

10 +

Engineers

10 +

Workers

100 +

㎡ workshop

10000 +

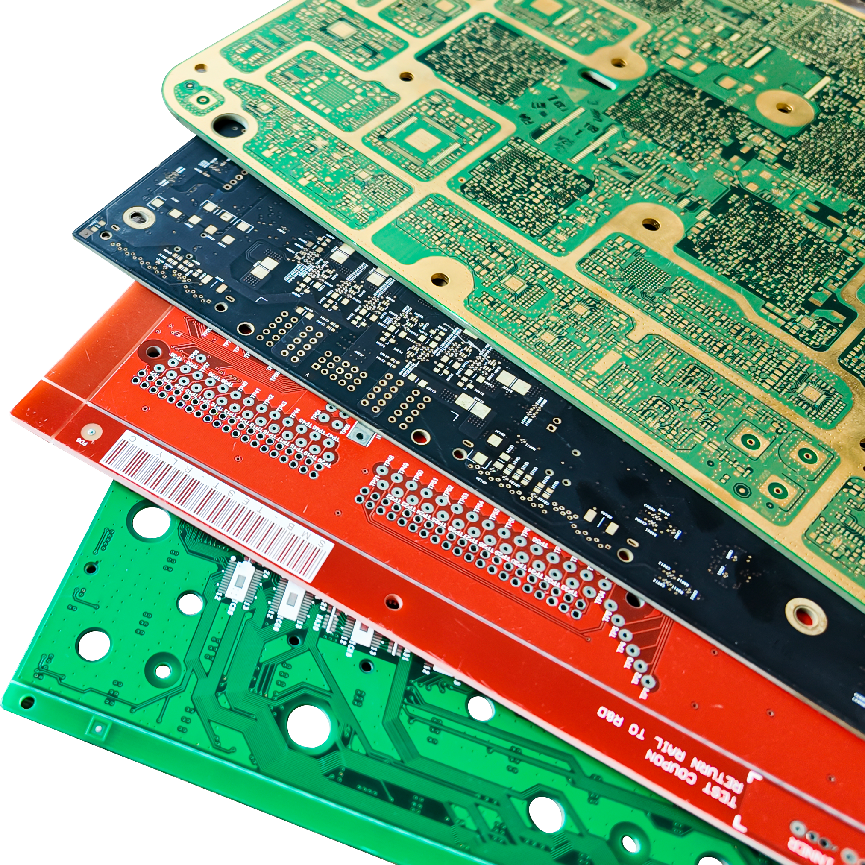

The Type of PCB we make

Rigid PCB

Wonderful provides Rigid PCB manufacturing Services, such as CEM, FR4 PCB, and other rigid materials.

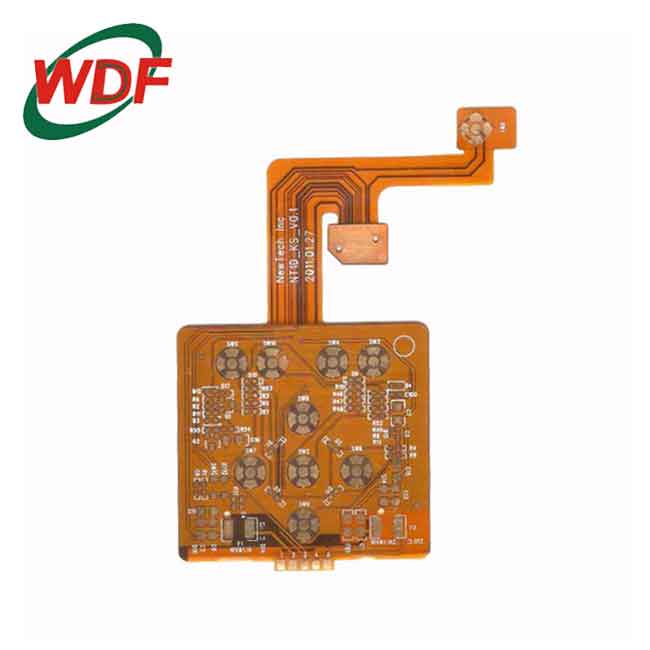

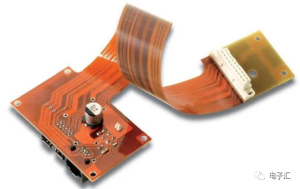

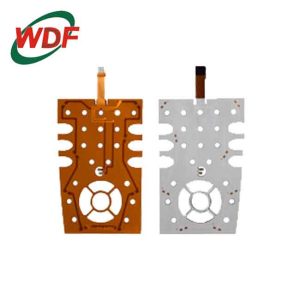

Flexible PCB

Flexible PCBs are lightweight, durable, and adaptable to complex shapes, ideal for compact electronic devices and wearable technology.

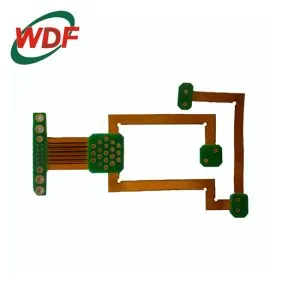

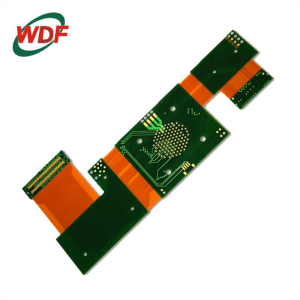

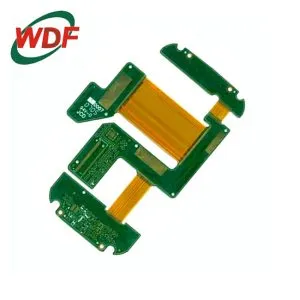

Rigid-Flex PCB

Rigid-Flex PCBs combine the benefits of both rigid and flexible circuits, offering strength and flexibility for space-constrained, high-performance applications.

HDI PCB

HDI PCBs feature high-density interconnections for compact, high-performance electronics, offering more functionality in smaller, lighter designs.

RF PCB

RF PCBs are designed for high-frequency signal transmission, ensuring stable performance in communication devices, radar, and wireless applications.

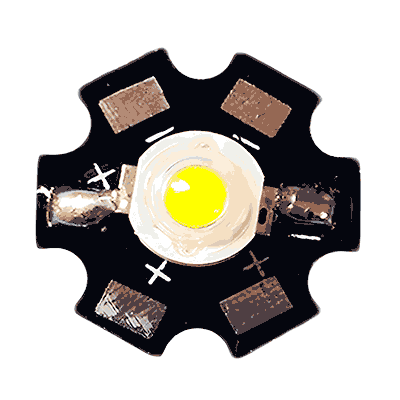

Metal Core PCB

Metal Core PCBs offer superior heat dissipation, which is ideal for high-power applications like LED lighting and automotive electronics.

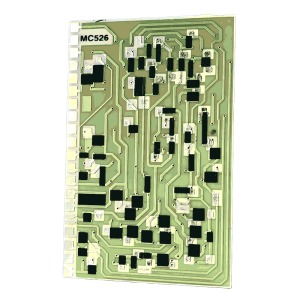

Ceramic PCB

Ceramic PCBs provide excellent thermal conductivity and electrical performance, perfect for high-power and high-frequency applications.

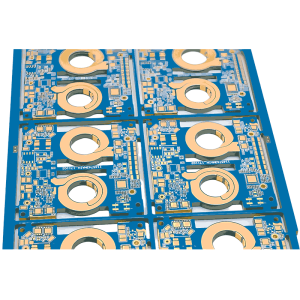

Heavy Copper PCB

Heavy Copper PCBs(>= 3 oz copper) are designed for high-current applications, offering enhanced power handling and durability for demanding electronic systems.

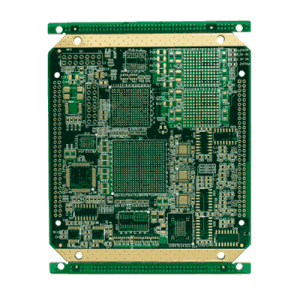

High Tg PCB

High Tg PCBs are built for high-temperature environments, offering improved thermal stability and reliability in demanding electronic applications.

Industries We Server

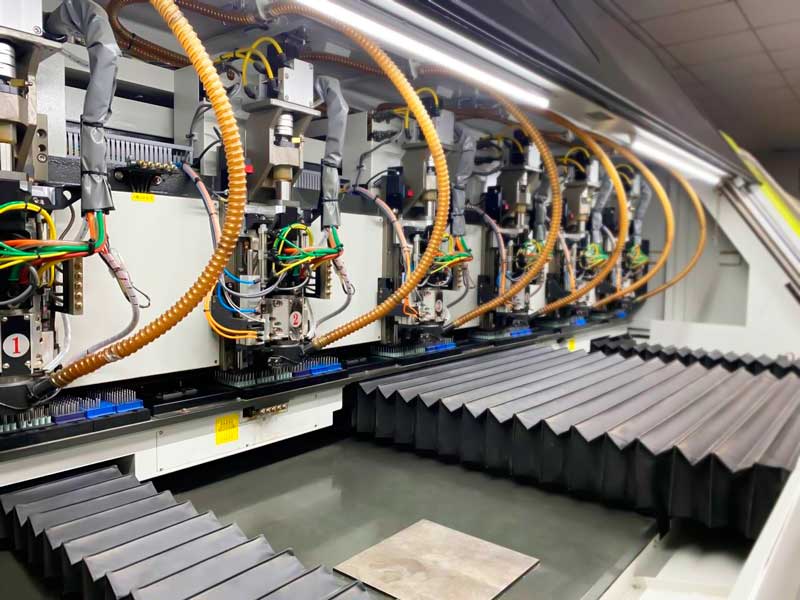

PCB Manufacturing Equipment in Factory Workshop

Multi-layer PCB Inner Layer Laminating Machine

Exhibition

The PCB exhibition is a very important channel for us to communicate face-to-face. Hope to meet you at the exhibition

Our PCB Manufacturing Capability

Feature	Capability
PCB Type	Rigid PCB(CEM, FR4), Flexible PCB, Rigid-Flex PCB, MCPCB(Aluminum PCB), Ceramic PCB, RF PCB, etc.
Number of Layers	1 – 32layers
Order Quantity	1pc – 10,000,000 pcs
Build Time	2days – 5weeks (Expedited Service)
Material	FR-4 Standard Tg 150°C, FR4-High Tg 170°C, FR4-High-Tg 180°C, FR4-Halogen-free, FR4-Halogen-free & High-Tg
Board Size	Min 66mm \| Max 600700mm
Board size tolerance	±0.1mm – ±0.3mm
Board Thickness	0.4mm – 3.2mm
Board Thickness Tolerance	±0.1mm – ±10%
Copper Weight	0.5oz – 6.0oz
Inner Layer Copper Weight	0.5oz – 2.0oz
Copper Thickness Tolerance	+0μm +20μm
Min Tracing/Spacing	3mil/3mil
Solder Mask Sides	As per the file
Solder Mask Color	Green, White, Blue, Black, Red, Yellow
Silkscreen Sides	As per the file
Silkscreen Color	White, Blue, Black, Red, Yellow
Surface Finish	HASL – Hot Air Solder Leveling Lead Free HASL – RoHS ENIG – Electroless Nickle/Immersion Gold – RoHS ENEPIG – Electroless Nickel Electroless Palladium Immersion Gold – RoHS Immersion Silver – RoHS Immersion Tin – RoHS OSP -Organic Solderability Preservatives – RoHS
Min Annular Ring	3mil
Min Drilling Hole Diameter	6mil, 4mil-laser drill
Min Width of Cutout (NPTH)	0.8mm
NPTH Hole Size Tolerance	±.002″ (±0.05mm)
Min Width of Slot Hole (PTH)	0.6mm
PTH Hole Size Tolerance	±.003″ (±0.08mm) – ±.006″ (±0.15mm)
Surface/Hole Plating Thickness	20μm – 30μm
SM Tolerance (LPI)	.003″ (0.075mm)
Aspect Ratio	1.10 (hole size: board thickness)
Test	10V – 250V, flying probe or testing fixture
Impedance tolerance	±5% – ±10%
SMD Pitch	0.2mm(8mil)
BGA Pitch	0.2mm(8mil)
Chamfer of Gold Fingers	20, 30, 45, 60
Other Techniques	Gold fingers Blind and Buried Holes peelable solder mask Edge plating Carbon Mask Kapton tape Countersink/counterbore hole Half-cut/Castellated hole Press fit hole Via tented/covered with resin Via plugged/filled with resin Via in pad Electrical Test
