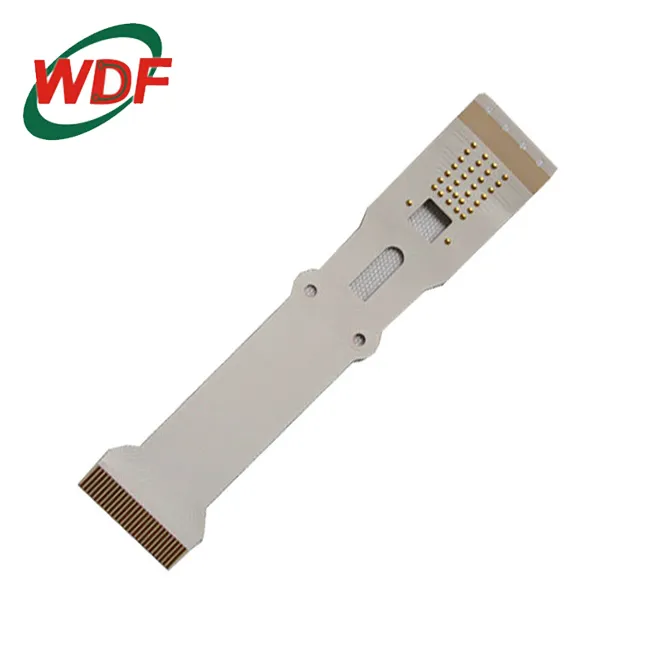

Aluminum Core PCB

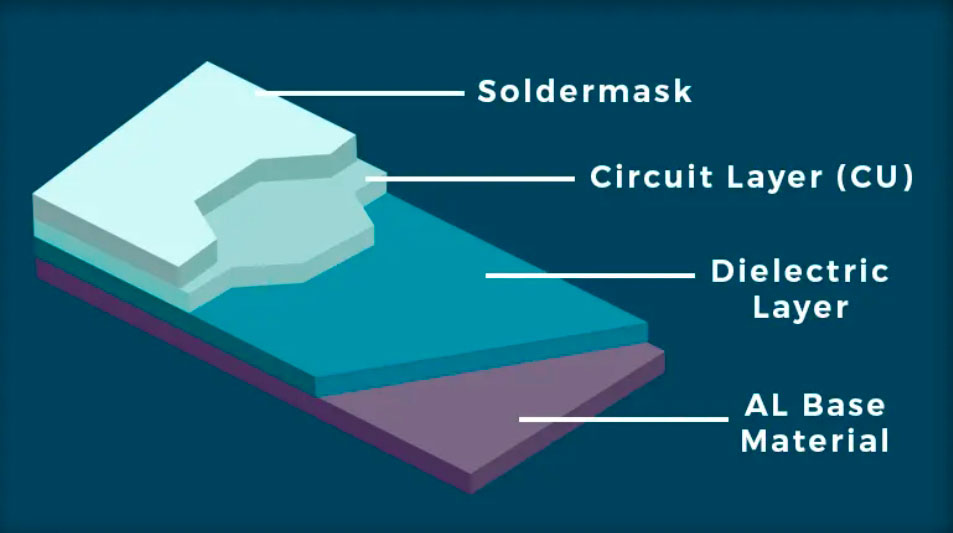

The advantages and Disadvantages of Aluminum PCB

Advantages:

1. Excellent Heat Dissipation: Aluminum PCBs are highly effective at transferring heat away from sensitive components, which minimizes the risk of damage in high-temperature applications.
2. Enhanced Durability: Aluminum offers superior strength compared to ceramic or fiberglass substrates, reducing the likelihood of breakage during manufacturing and usage.
3. Environmental Friendliness: Aluminum is recyclable and non-toxic, aligning with sustainability goals and energy conservation during assembly.
4. Lightweight: Despite their durability, aluminum PCBs are lightweight, making them ideal for applications where weight is a critical factor, such as in aerospace and mobile devices.

Disadvantages:

1. Higher Cost: The manufacturing process for aluminum PCBs can be more complex and costly compared to standard fiberglass-based PCBs.
2. Process Complexity: Working with aluminum requires specialized techniques for welding and routing, increasing production difficulties.
3. Limited Applications: Aluminum PCBs are best suited for high-power devices with significant heat dissipation needs, making them less ideal for low-power applications.
4. Potential Susceptibility: Aluminum can be vulnerable to corrosion from certain environmental factors, particularly halide ions like chloride.

Performance of Aluminum PCBs

1. Thermal Dissipation

Aluminum PCBs excel in thermal management, addressing a significant limitation of common PCB substrates like FR4 and CEM3, which are poor thermal conductors. Efficient heat dissipation is crucial; without it, electronic components can experience high-temperature failures. Aluminum substrates facilitate superior thermal dissipation, ensuring that heat generated by electronic devices is effectively distributed, thereby enhancing overall performance and reliability.

2. Thermal Expansion

The aluminum substrate effectively mitigates issues related to thermal expansion and contraction of components. As temperatures fluctuate, components made from different materials can expand or contract at varying rates, potentially leading to mechanical stress and failure. Aluminum substrates alleviate these concerns, particularly in SMT (Surface Mount Technology) applications, improving the durability and reliability of the entire electronic assembly.

3. Dimensional Stability

Aluminum PCBs demonstrate excellent dimensional stability compared to insulating materials. When subjected to temperature changes—from 30 °C to 140-150 °C—aluminum substrates experience only a minimal dimensional change of about 2.5-3.0%. This stability is crucial for maintaining the integrity and functionality of electronic circuits under varying thermal conditions.

4. Other Performance Attributes

In addition to thermal advantages, aluminum substrates provide shielding effects and can serve as a robust alternative to brittle ceramic substrates. They enhance heat resistance and physical properties, which contribute to the overall performance of the circuit board. Furthermore, the use of aluminum substrates can lead to reduced production costs and labor, making them a cost-effective choice in various applications.

Applications of Aluminum PCBs

Aluminum PCBs are renowned for their excellent thermal dissipation capabilities, making them ideal for various applications, particularly in environments where heat management is critical. Here are some of the key applications of aluminum PCBs across different industries:

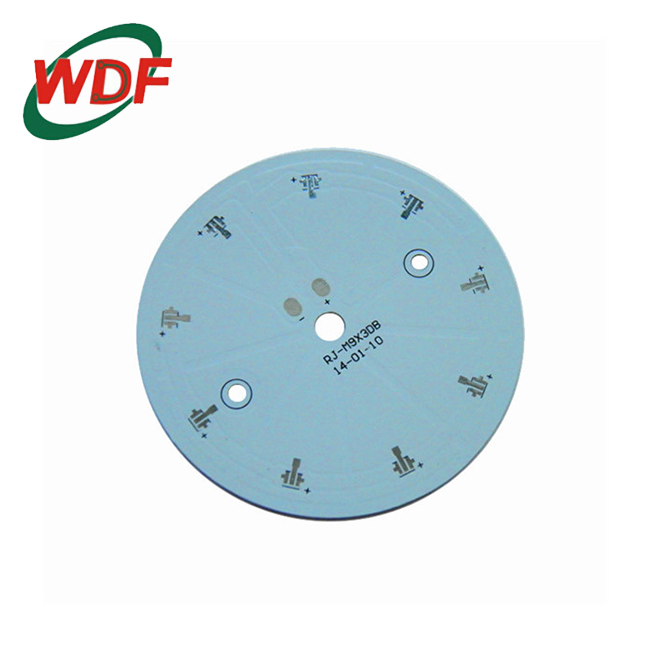

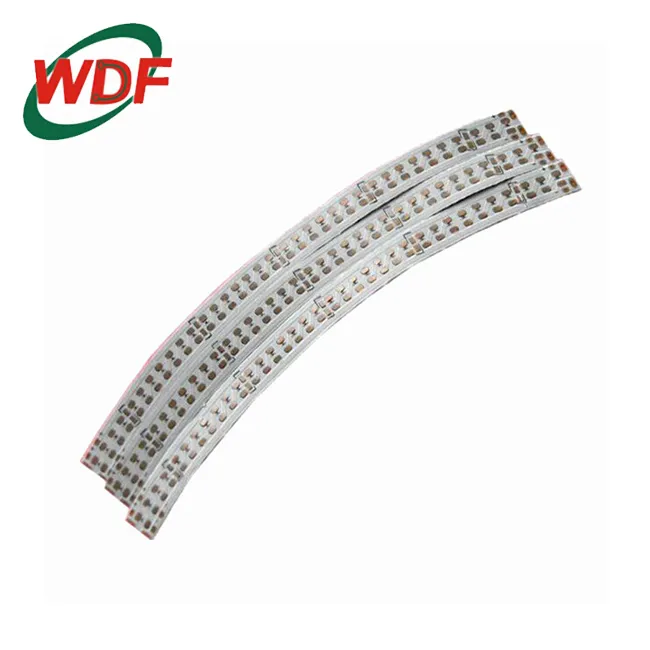

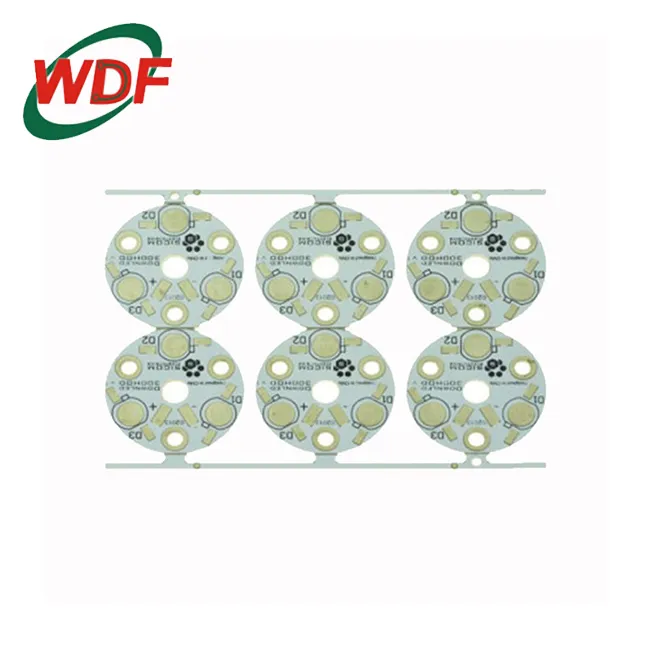

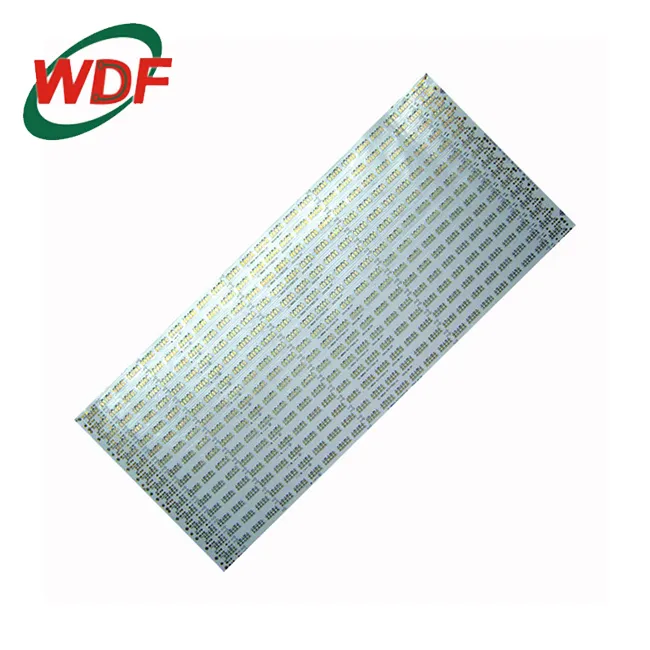

1. LED Lighting
   Due to the significant heat generated by LEDs, aluminum substrates are commonly used in LED circuit boards. They ensure efficient heat dissipation, extending the lifespan and performance of LED lamps.
2. Audio Equipment
   Aluminum PCBs are utilized in a range of audio devices, including input/output amplifiers, balanced amplifiers, audio amplifiers, preamplifiers, and power amplifiers. Their thermal management properties help maintain sound quality and device reliability.
3. Power Supply Devices
   In power supply applications, aluminum PCBs are used in stabilizers, conditioners, and DC-AC adapters. Their durability and heat resistance are critical for maintaining performance in high-power situations.
4. Communication Electronics
   High-frequency amplifiers, filtering circuits, and transceiver circuits benefit from the thermal stability provided by aluminum PCBs, ensuring reliable operation in communication devices.
5. Office Automation Equipment
   In devices such as motor drivers and automated office equipment, aluminum PCBs contribute to efficient operation and reliability, particularly under varying thermal conditions.
6. Computers
   Aluminum substrates are found in power supply devices, floppy disk drives, motherboards, and other computer components where heat dissipation is essential for performance and longevity.
7. Power Modules
   Applications such as inverters, solid-state relays, and rectifier bridges utilize aluminum PCBs to manage heat effectively and enhance reliability in power conversion processes.
8. Industrial Vehicles
   In automotive applications, aluminum PCBs are employed in ignition systems, voltage regulators, and automatic safety control systems, where durability and thermal management are vital.
9. Switches and Microwave Devices
   Aluminum PCBs are also used in radiators, semiconductor devices, thermal insulation, and motor controllers, providing efficient thermal performance.

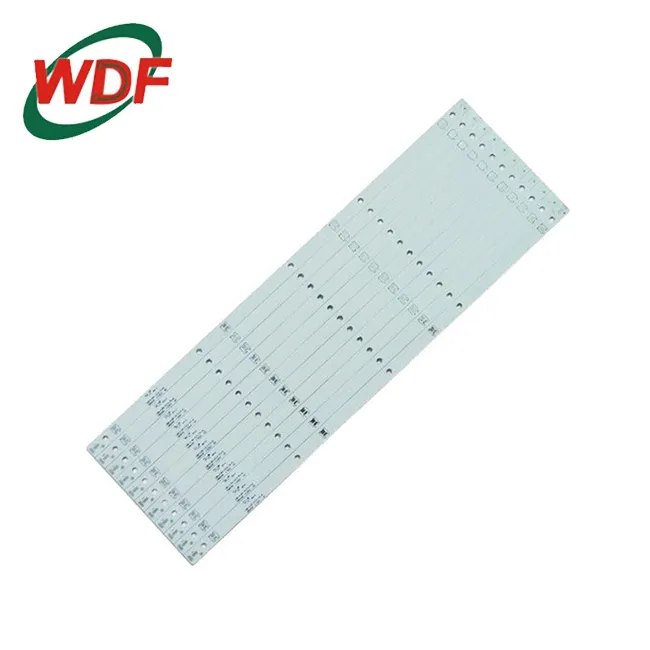

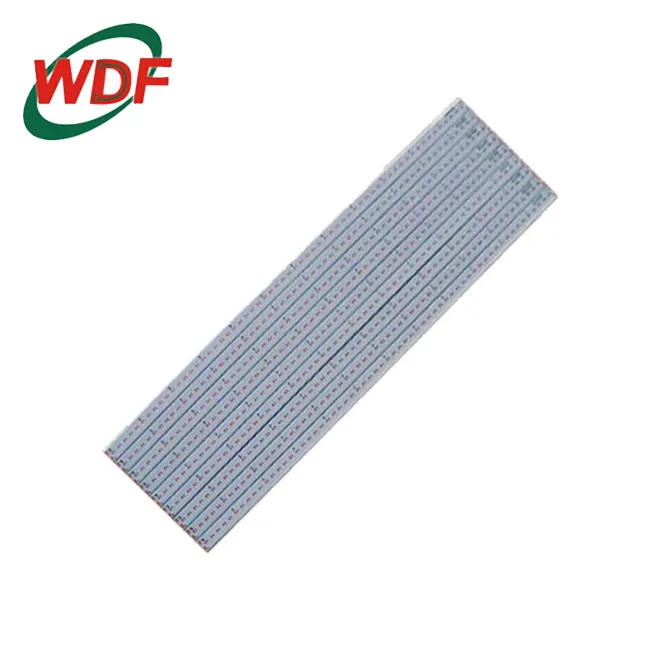

10. LED Displays
    In both standalone LED displays and displays that utilize LED light sources, aluminum substrates are critical for managing heat, ensuring effective operation and visual performance.

 Challenges of Aluminum Core PCBs Manufacturing

The production of aluminum PCBs presents several significant challenges that require careful management to ensure optimal performance and quality. Here are some of the primary challenges encountered during the manufacturing process:

1. Mechanical Processing
   Drilling aluminum substrates must be performed without leaving burrs on the edges of holes, as these can affect pressure testing results. The milling process can be particularly challenging, and precise shaping often requires advanced molds. Ensuring that edges are neat and undamaged, especially around solder masks, is critical. Techniques like up-cut and down-pull punching necessitate skilled handling to maintain board curvature within 0.5%.

2. Avoiding Surface Scratches
   Aluminum surfaces are prone to discoloration and damage from contact or exposure to certain chemicals. Maintaining the integrity of the aluminum finish throughout the manufacturing process is crucial; even minor scratches can lead to customer rejection. Companies often employ passivation processes or protective films to mitigate these risks.

3. High Voltage Testing
   For communication power aluminum substrates, 100% high voltage testing is mandatory, with specifications often requiring either DC or AC voltage of 1500V to 1600V for durations of 5 to 10 seconds. Contaminants, burrs, or damage to insulation can lead to failure during testing, resulting in rejections for boards that show delamination or bubbling.

4. Thick Copper Etching
   Aluminum PCBs used in high-power applications often feature thicker copper foils (3oz or higher). Etching such thickness requires careful compensation for trace width to maintain tolerance levels. Precise design and control of etching parameters are essential to ensure trace integrity and meet impedance specifications.

5. Solder Mask Printing
   The presence of thick copper foils complicates solder mask printing due to differences in surface levels between traces and substrates. Successful adhesion of the solder mask may require the use of high-quality materials and possibly double printing. In some cases, resin filling prior to solder mask application may be necessary.

6. Mechanical Manufacturing
   Mechanical processes like drilling, milling, and V-cutting are critical in aluminum PCB production. Burrs left in internal vias during drilling can compromise electrical strength. To maintain high-quality results, especially in small batch productions, the use of specialized milling tools and careful adjustment of drill parameters is essential.
